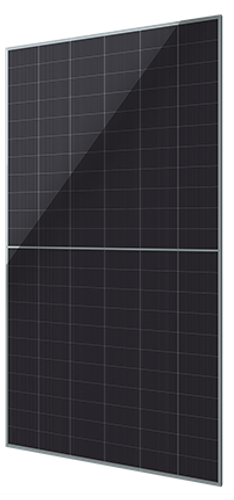

FLAMINGO Series | TOPCon Technology
Embrace the Sun, Power a Zero-Carbon Future
15 years
Product warranty
30 years
Power warranty
725W
Maximum power
23.3%
Maximum efficiency
Temperature Ratings (STC Test)
Temperature coefficient of lsc
+0.045%/°C
Temperature coefficient of Voc
-0.25%/°C
Temperature coefficient of Pmax
-0.29%/°C
Product Line
FLAMINGO M10-156D
Cell type: N-Type
Conversion efficiency: 23.3%
Maximum power: 650W
FLAMINGO M10-144D
Cell type: N-Type
Conversion efficiency: 23.2%
Maximum power: 600W
FLAMINGO G12-132D
Cell type: N-Type
Conversion efficiency: 23.3%
Maximum power: 725W
01
Anti-PID performance
Excellent anti-PID performance
02
High power generation performance
High power generation performance, lower temperature coefficient (-0.29%/℃)
03
Excellent On-Site Power Output
Better temperature coefficient, low-light performance, and bifaciality, generating more electricity in real-world applications.
04
Extended Warranty
15-Year Product Warranty, Extendable to 25 Years; 30-Year Power Warranty.
Product Advantages
01
Project Sky Guardian
Describe the service and how customers or clients can benefit from it. This is the place to add a short description with relevant details, like pricing, duration and how to book.
02
NextGen Fighter Jet Development
Describe the service and how customers or clients can benefit from it. This is the place to add a short description with relevant details, like pricing, duration and how to book.
03
Space Debris Removal Technology
Describe the service and how customers or clients can benefit from it. This is the place to add a short description with relevant details, like pricing, duration and how to book.
04
Hypersonic Missile Defense Systems
Describe the service and how customers or clients can benefit from it. This is the place to add a short description with relevant details, like pricing, duration and how to book.
05
Space Situational Awareness (SSA)
Describe the service and how customers or clients can benefit from it. This is the place to add a short description with relevant details, like pricing, duration and how to book.
06
Autonomous Drone Swarm Technology
Describe the service and how customers or clients can benefit from it. This is the place to add a short description with relevant details, like pricing, duration and how to book.
Mechanical Parameters
Item
Cell type
No. of cells
Frame
Glass
Weight
Dimension
Specifications
N-Type TOPCon
132(2x66)
Front: 2.0mm,semi-tempered
Rear: 2.0mm, semi-tempered
Anodized aluminum alloy frame
37.1 kg
2384x1303x33mm
Mechanical Parameters
Item
Specifications
Cell type
No. of cells
Glass
Frame
Weight
Dimension
N-Type TOPCon
132(2x66)
Front: 2.0mm,semi-tempered
Rear: 2.0mm, semi-tempered
Anodized aluminum alloy frame
37.1 kg
2384x1303x33mm
01
Project Sky Guardian
Describe the service and how customers or clients can benefit from it. This is the place to add a short description with relevant details, like pricing, duration and how to book.
02
NextGen Fighter Jet Development
Describe the service and how customers or clients can benefit from it. This is the place to add a short description with relevant details, like pricing, duration and how to book.
03
Space Debris Removal Technology
Describe the service and how customers or clients can benefit from it. This is the place to add a short description with relevant details, like pricing, duration and how to book.
04
Hypersonic Missile Defense Systems
Describe the service and how customers or clients can benefit from it. This is the place to add a short description with relevant details, like pricing, duration and how to book.
05
Space Situational Awareness (SSA)
Describe the service and how customers or clients can benefit from it. This is the place to add a short description with relevant details, like pricing, duration and how to book.
06
Autonomous Drone Swarm Technology
Describe the service and how customers or clients can benefit from it. This is the place to add a short description with relevant details, like pricing, duration and how to book.
Electrical Characteristics (STC Test)
Component model
Maximum Power
(Pmax/W)
Open Circuit Voltage
(Voc/V)
Short-circuit Current
(lsc/A)
Peak Power Voltage
(Vmp/V)
Peak Power Current
(Imp/A)
Module Efficiency
(%)
GK-2-66HTBD
-700M
700
47.90
18.08
41.10
17.04
22.5
GK-2-66HTBD
-705M
705
48.68
18.11
41.29
17.07
22.7
GK-2-66HTBD
-710M
710
48.91
18.15
41.50
17.11
22.9
GK-2-66HTBD
-715M
715
49.14
18.19
41.69
17.15
23.0
GK-2-66HTBD
-720M
720
49.36
18.24
41.91
17.18
23.2
GK-2-66HTBD
-725M
725
49.55
18.32
42.10
17.22
23.3
01
Project Sky Guardian
Describe the service and how customers or clients can benefit from it. This is the place to add a short description with relevant details, like pricing, duration and how to book.
02
NextGen Fighter Jet Development
Describe the service and how customers or clients can benefit from it. This is the place to add a short description with relevant details, like pricing, duration and how to book.
03
Space Debris Removal Technology
Describe the service and how customers or clients can benefit from it. This is the place to add a short description with relevant details, like pricing, duration and how to book.
04
Hypersonic Missile Defense Systems
Describe the service and how customers or clients can benefit from it. This is the place to add a short description with relevant details, like pricing, duration and how to book.
05
Space Situational Awareness (SSA)
Describe the service and how customers or clients can benefit from it. This is the place to add a short description with relevant details, like pricing, duration and how to book.
06
Autonomous Drone Swarm Technology
Describe the service and how customers or clients can benefit from it. This is the place to add a short description with relevant details, like pricing, duration and how to book.
Electrical Characteristics (STC Test)
Component model
Maximum Power
(Pmax/W)
Open Circuit Voltage
(Voc/V)
Short-circuit Current
(lsc/A)
Peak Power Voltage
(Vmp/V)
Peak Power Current
(Imp/A)
Module Efficiency
(%)
GK-2-66HTBD
-700M
700
47.90
18.08
41.10
17.04
22.5
GK-2-66HTBD
-705M
705
48.68
18.11
41.29
17.07
22.7
GK-2-66HTBD
-710M
710
48.91
18.15
41.50
17.11
22.9
GK-2-66HTBD
-715M
715
49.14
18.19
41.69
17.15
23.0
GK-2-66HTBD
-720M
720
49.36
18.24
41.91
17.18
23.2
GK-2-66HTBD
-725M
725
49.55
18.32
42.10
17.22
23.3
01
Project Sky Guardian
Describe the service and how customers or clients can benefit from it. This is the place to add a short description with relevant details, like pricing, duration and how to book.
02
NextGen Fighter Jet Development
Describe the service and how customers or clients can benefit from it. This is the place to add a short description with relevant details, like pricing, duration and how to book.
03
Space Debris Removal Technology
Describe the service and how customers or clients can benefit from it. This is the place to add a short description with relevant details, like pricing, duration and how to book.
04
Hypersonic Missile Defense Systems
Describe the service and how customers or clients can benefit from it. This is the place to add a short description with relevant details, like pricing, duration and how to book.
05
Space Situational Awareness (SSA)
Describe the service and how customers or clients can benefit from it. This is the place to add a short description with relevant details, like pricing, duration and how to book.
06
Autonomous Drone Swarm Technology
Describe the service and how customers or clients can benefit from it. This is the place to add a short description with relevant details, like pricing, duration and how to book.
Electrical Characteristics (STC Test)
Component model
Maximum Power
(Pmax/W)
Open Circuit Voltage
(Voc/V)
Short-circuit Current
(lsc/A)
Peak Power Voltage
(Vmp/V)
Peak Power Current
(Imp/A)
Module Efficiency
(%)
GK-2-66HTBD
-700M
700
47.90
18.08
41.10
17.04
22.5
GK-2-66HTBD
-705M
705
48.68
18.11
41.29
17.07
22.7
GK-2-66HTBD
-710M
710
48.91
18.15
41.50
17.11
22.9
GK-2-66HTBD
-715M
715
49.14
18.19
41.69
17.15
23.0
GK-2-66HTBD
-720M
720
49.36
18.24
41.91
17.18
23.2
GK-2-66HTBD
-725M
725
49.55
18.32
42.10
17.22
23.3
Mechanical Loading
Front Side Maximum Static Loading
5400Pa
Rear Side Maximum Static Loading
2400Pa
Hailstone Test
25mm hailstone at 23m/s
